Portable Facing Machine size 1/2" - 120" ( 3050 mm)

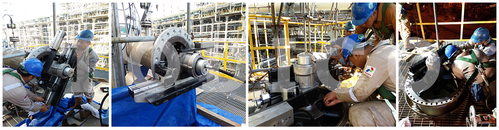

An internally mounted flange facing machine for all types of flange facing, seal groove machining, weld prep and counter boring.
  • Latest linear technology incorporated.
  • Continuous groove feed gearbox.
  • Tool for Grooves, RTJ flanges & Bevels
  • High torque reduction drive.
  • Quick set adjustable clamping jaws.
  • Latest linear technology for accuracy
FLANGE FACING H.E OD 3054mm
Model: FF-350
Range : 3/4-12"
Model : FF-610
Range : 2-24"
Model : FF-1270
Range : 14-50"
Model : FF-1500
Range : 12-60"
Model : FF-3000
Range : 45-120"
Model : LM-2000
Range : 80"

ASME B16.5 Standard

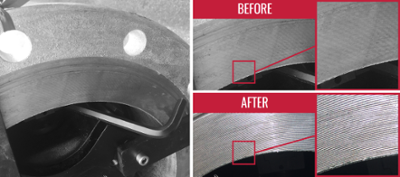

According to the American Society of Mechanical Engineers (ASME) “The finish of the gasket contact faces shall be judged by visual comparison with Ra standards (see ASME B46.1) and not by instruments having stylus tracers and electronic amplification.”
